Testing an Electric Range Surface Element

Range surface element cross section

An electric range's element is basically just a resistance wire suspended inside of a hard metal alloy bent into various shapes, separated from it by insulation. When power is applied to it, the resistance wire generates heat which is conducted to the element's outer sheath where it can be absorbed by the cooking utensil or the air inside the oven cavity.

When this type of element fails, the internal resistance wire breaks causing an open circuit. Since the circuit is now open, no electrical current can flow through the element to generate heat.

The insulation between the resistance wire and the outer coating can also deteriorate. When this occurs the inner resistance wire can come into contact with the outer sheath causing a short to ground. The force of such a short can blow a hole right through the outer coating, melting it and sometimes damaging cookware being used at the time.

Element Testing

To test an element for continuity the appliance should first be disconnected from power. After the appliance has been made safe to work on, the element needs to be isolated from the rest of the electrical circuit by removing at least one of the connecting wires. Once that is done, an ohm meter or continuity tester's leads can be held against each terminal of the element.

Testing a range element

The exact resistance of an element is often not important as it will not usually change over its life span except to become totally open (show infinite resistance) when defective or becomes shorted to ground (see below). In case you're curious, a large cooktop surface burner is usually in the area of 27 ohms, a small 45 ohms. A bake or broil oven element's resistance may be in the area of 20 to 40 ohms depending on its wattage.

Short to Ground

An element can also become partially shorted to ground. While this may not be enough to create a dead short and cause the element to fail outright, it can create a shock hazard. To test an element for a short to ground, an ohmmeter should be set on its highest ohm scale (1K or 10K) and tested from one of the element's terminals to the element's metal sheath. It may be necessary to rub the outer element surface with the meter probe to make a good contact. If anything other than infinite resistance is shown, replace the element.

Testing a range element for a short to ground

BTW. When performing the above test with the meter set on such a high ohm scale, be sure not to be touching both meter probe's metal tips with your fingers. If that were to happen the meter may display the resistance of your skin instead of just that of the element. You can touch one of the meter leads while testing without causing an erroneous reading.

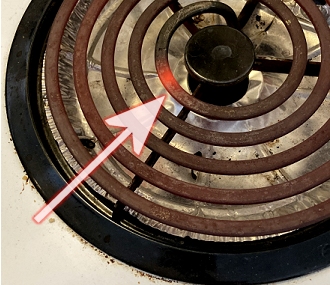

Hot Spot

Range surface element showing signs of impending failure

If while heating an electric range element has one spot which is glowing brighter than the mostly uniform color of the rest of the element, it is likely a sign of an impending failure. In such a case the element should be replaced to avoid possible critical failure as described above. This type of failure would likely show a short to ground if tested, which could also be a shock hazard.
